dripper. flow rate

( from instagram post 2024.12.15 )

< dripper design. flow rate >

Flow rate is directly affected by the inner surface of dripper. Whether it has ridges, grooves, in radial lines or spiral pattern, these elements create "void passages" behind filter paper and allow water to escape. The more and deeper the passages, the faster the drawdown. Here are two extreme examples:

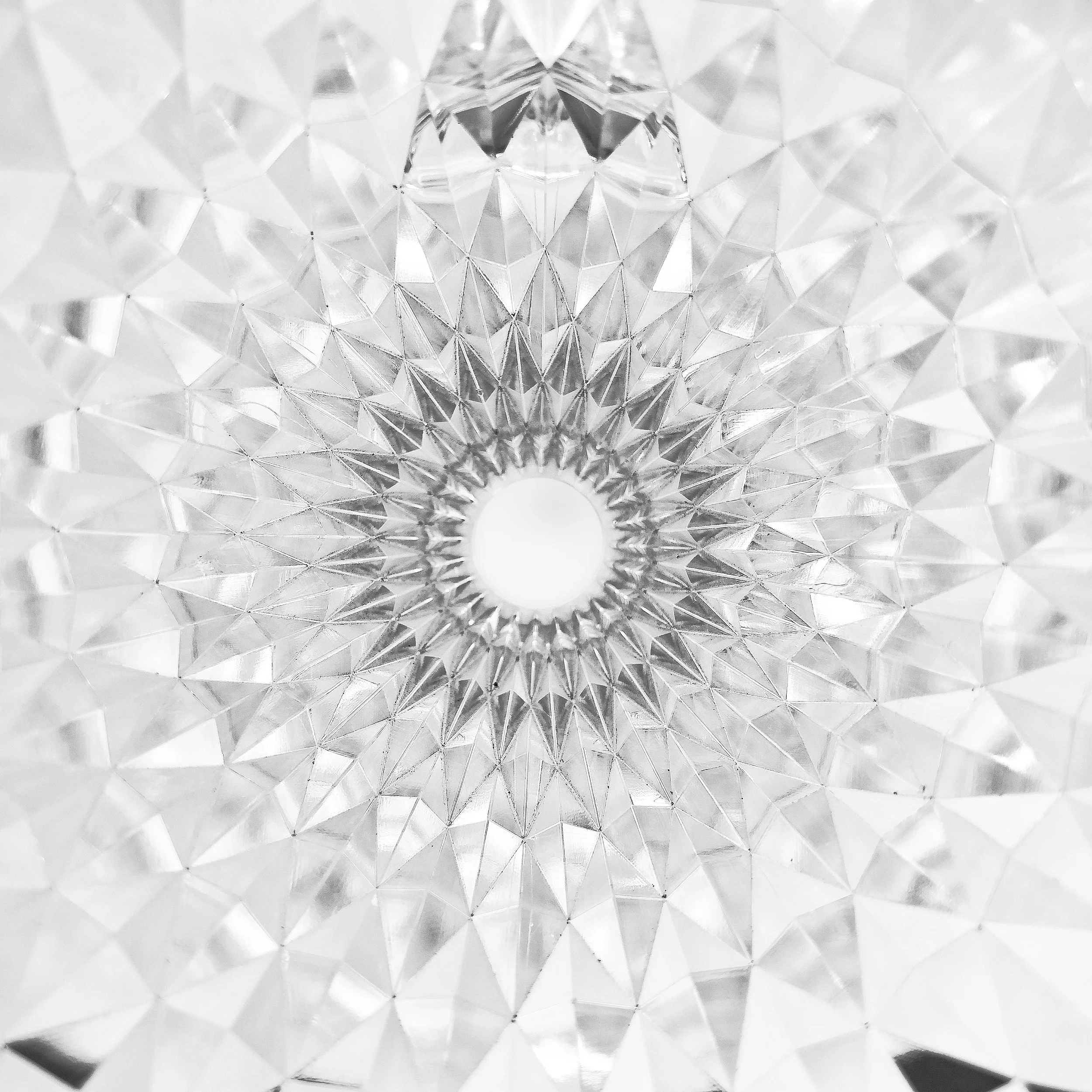

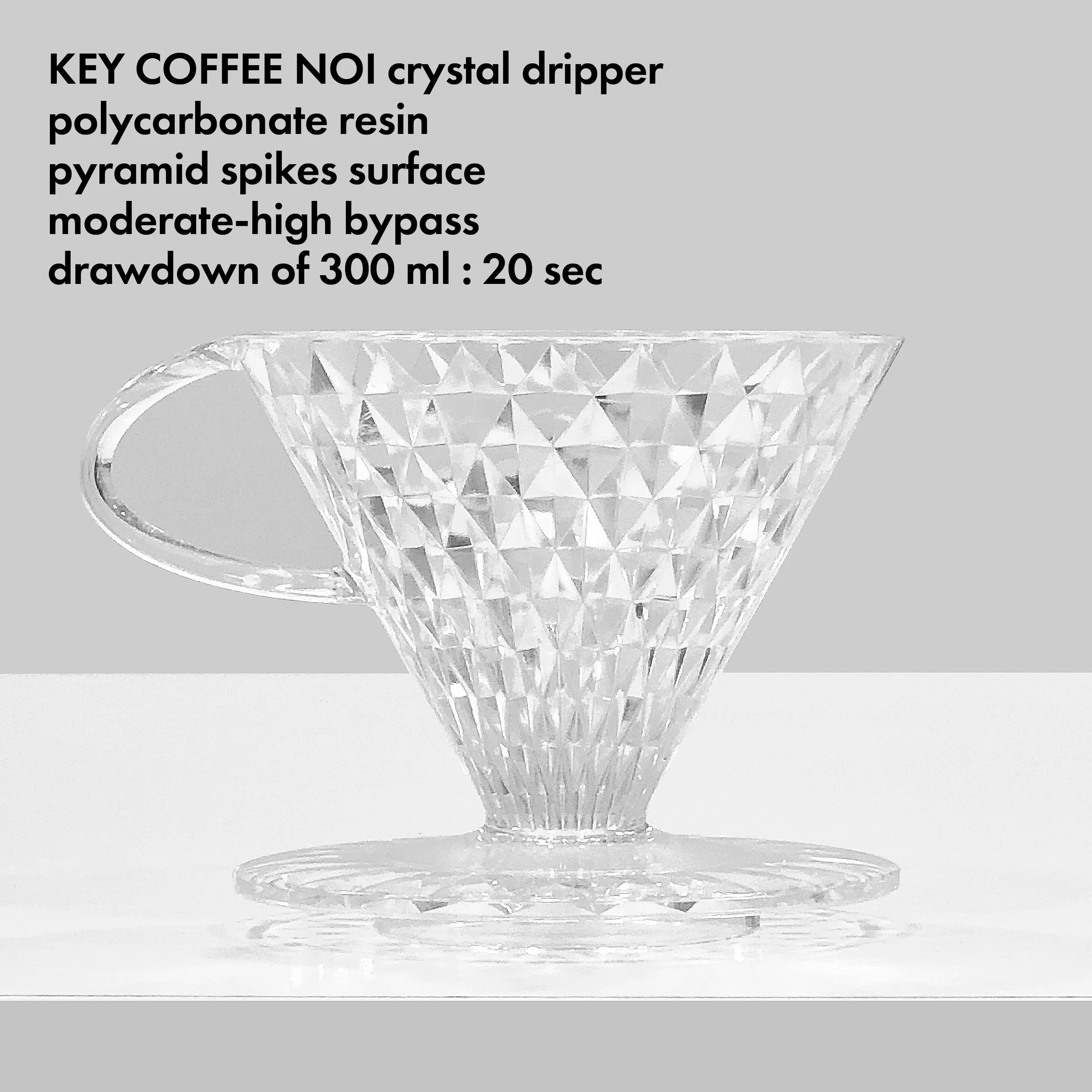

Image 1 and 2 : Noi crystal dripper by Key Coffee, my favorite of all time. It costs only 1,200 yen but is very durable. It is made of polycarbonate resin, exceptionally lightweight and I dare say that it is truly odorless after years of use.

It has pyramid spikes all around. The spikes allow very even, effective bypass and its flow rate is faster than many equivalent products. Such design gives the flexibility I need to explore recipes: whether I want a fast brew clean and light, or a finer-grind, high extraction brew with no worries about stalling.

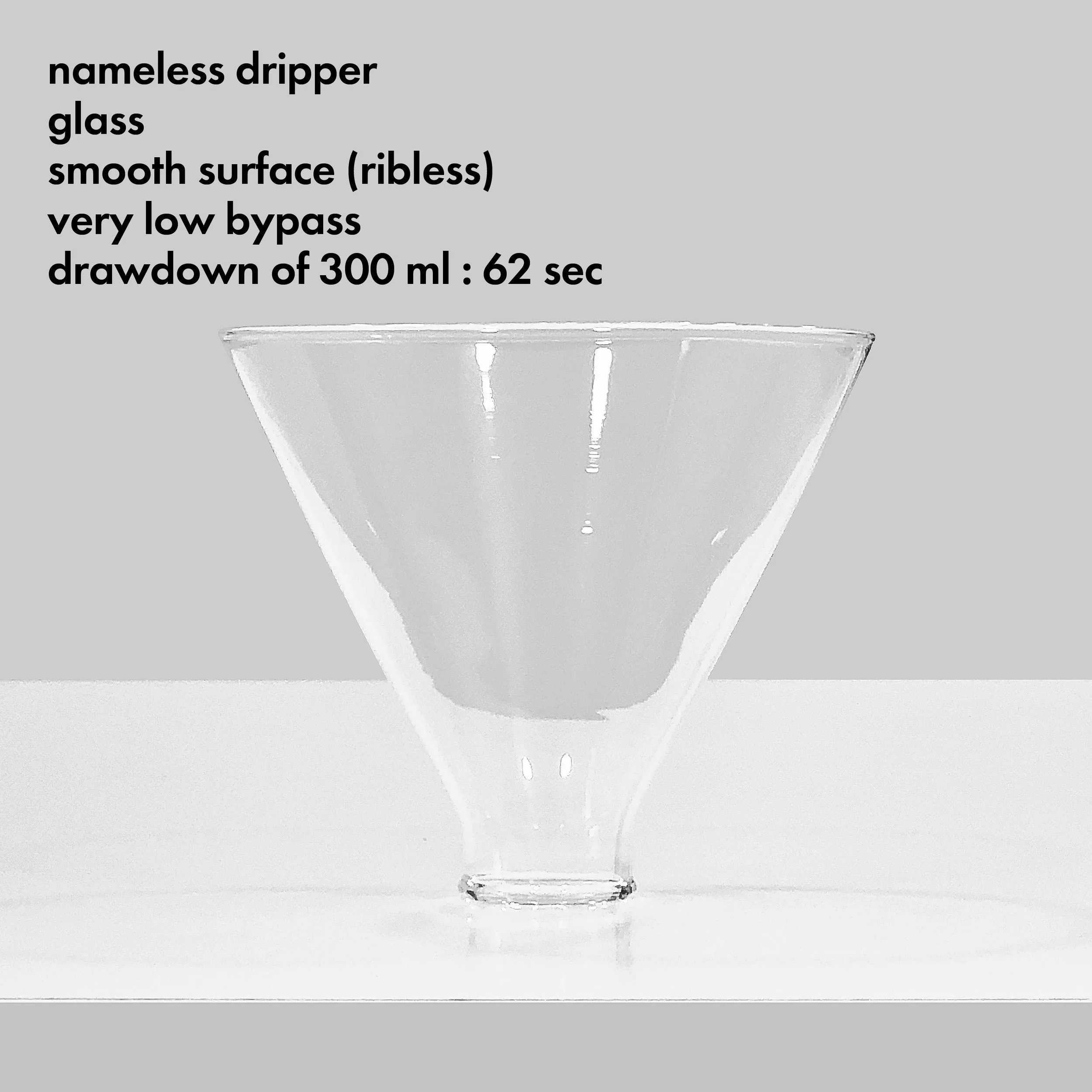

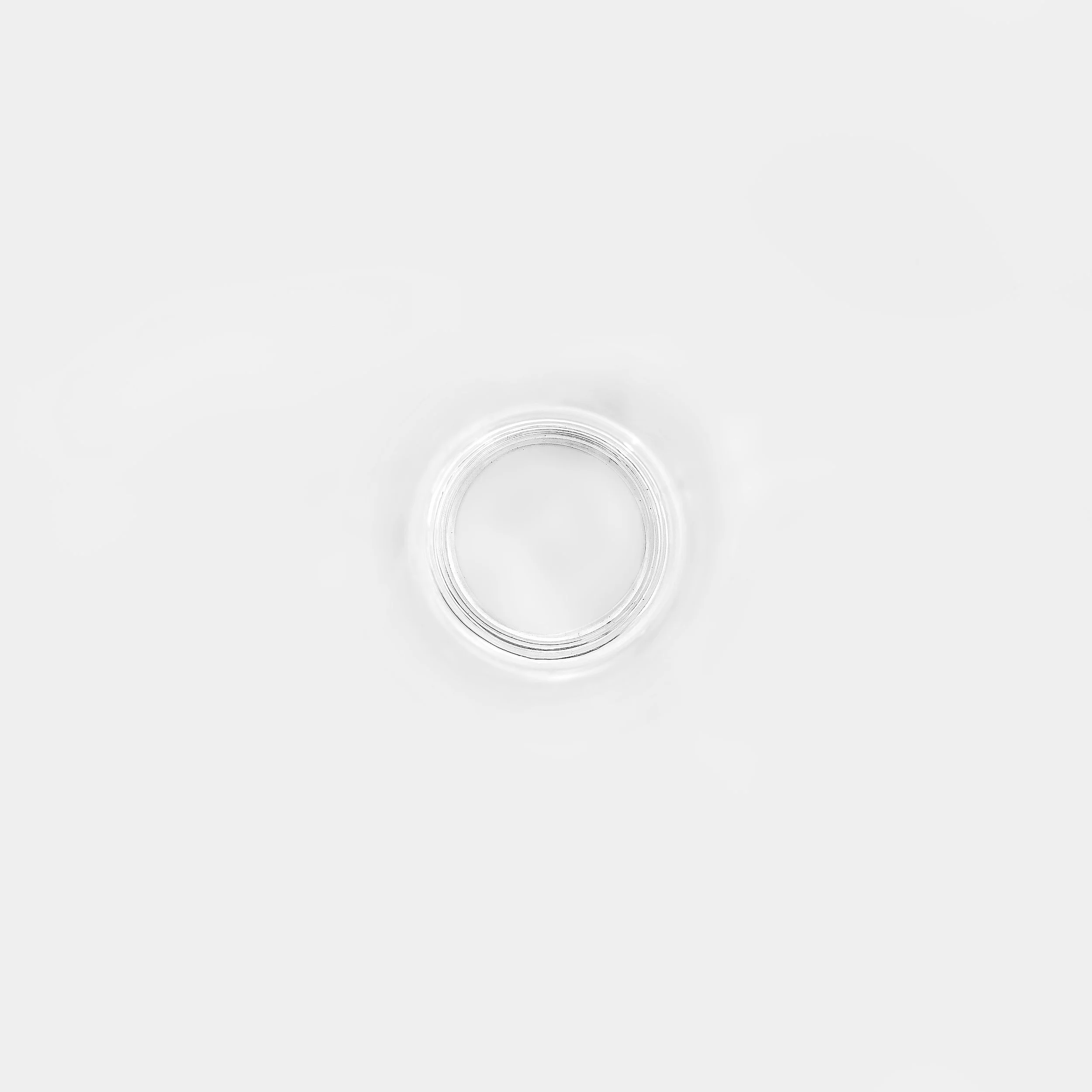

Image 3 and 4 : a nameless glass dripper purchased from Taobao (or Aliexpress to some countries) at rmb 50. It adopts a completely ribless approach that maximizes contact areas with filter paper. Bypass is kept at minimum while the drawdown is also significantly slower. I found it takes 3 times longer than Noi to drain same amount of water, and is unlikely to finish a 250 ml brew within 9 minutes. Nevertheless, I think it is a fun dripper to use if one can nail down the right grind size and pouring speed (just not so viable for daily use or cafes at the very least).

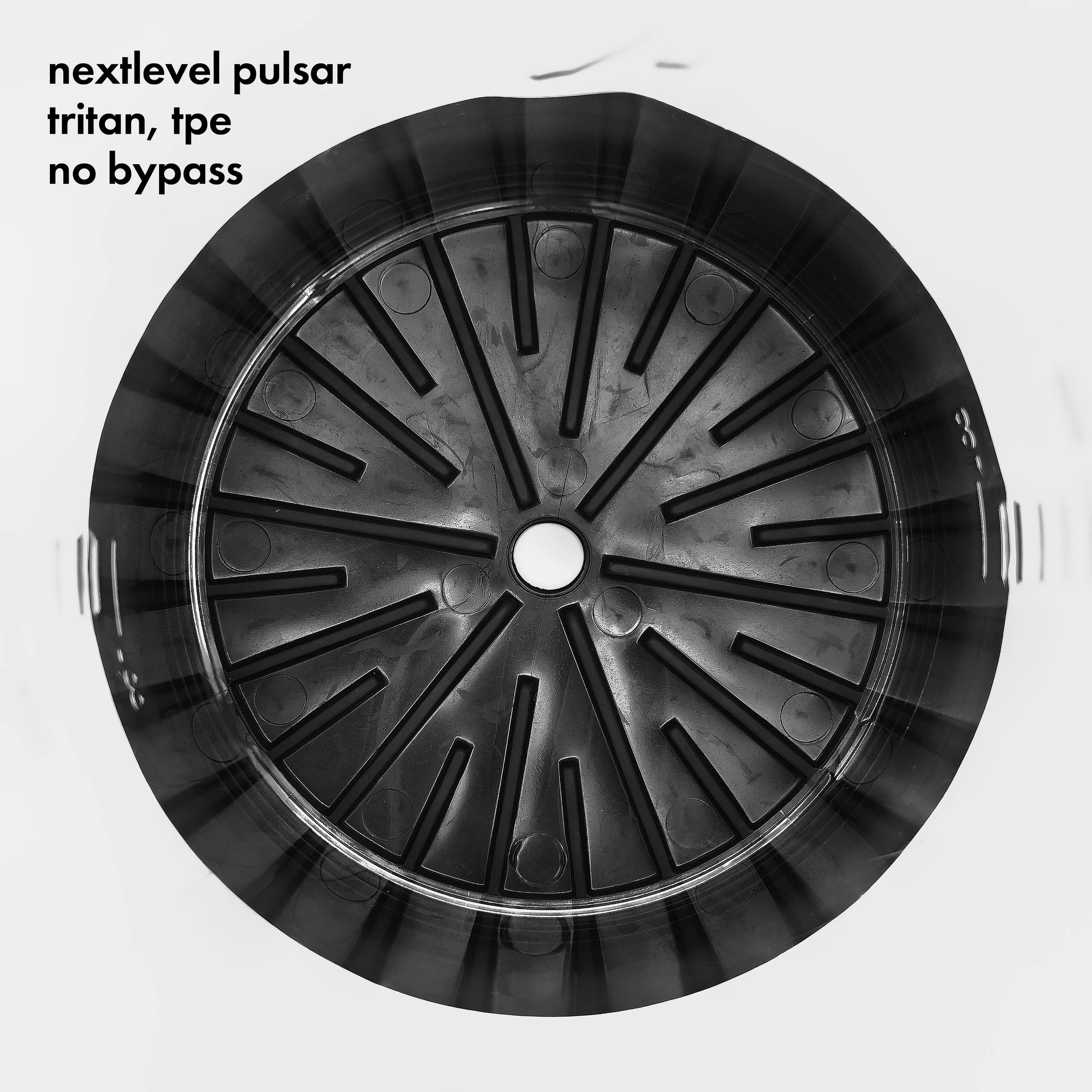

Image 5 : Nextlevel pulsar is an entirely different species from v60-type drippers. It is a true zero-bypass brewer that water must pass through coffee layer before reaching the filter paper. It is my default QC companion.

Let's share your favorite dripper and why you like it most!
